Kobelco CK800-3 Crane Overview

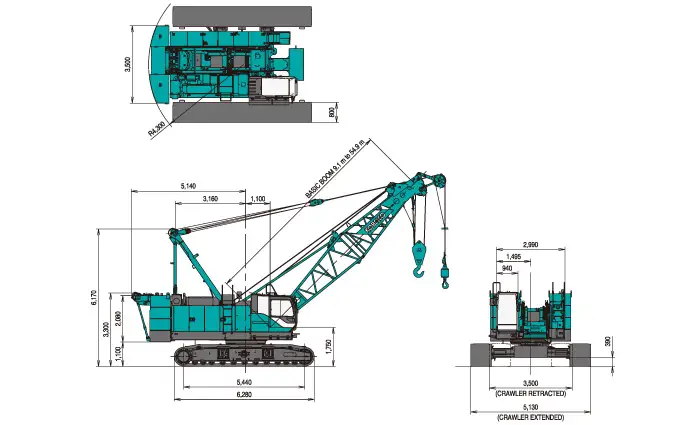

Kobelco CK800-3 Crane
The Kobelco CK800-3 stands out for its practical performance. Its main boom extends to 51.2 meters, handling 80 tons at short radii—ideal for tight job sites with limited space. It was highly appreciated for its smooth track movement, which relies on a robust undercarriage system. Every part in this system works in tandem: track shoes spread the crane’s weight to avoid sinking on soft ground; bottom rollers support the crane’s frame; top rollers guide the tracks; idlers keep the tracks tight; sprockets drive the track’s motion. When these parts wear out, the CK800-3 crane can’t operate safely or efficiently. For one CK800-3 crawler crane, it needs 126pcs track pad with pins and bolt&nut (track shoe, track plate), 20pcs track roller (bottom roller, lower roller), 6pcs top roller (upper roller, carrier roller), 2pcs idler (guide wheel, tumbler take up), and 2pcs sprocket (drive tumbler). That’s where we step in.
Kobelco CK800-3 Crane Undercarriage Parts Supplier
Shandong Value Machinery focuses on Kobelco CK800-3 undercarriage parts that meet OEM standards. We use heat-treated alloy steel for our CK800-3 track shoes, which are more wear-resistant than generic parts made from low-grade steel. Our CK800-3 bottom rollers feature a perfect seal design. This seal blocks mud and sand from entering the roller core, reducing seal failure in humid or dusty job sites.
We don’t cut corners on quality checks for Kobelco CK800-3 undercarriage parts. Every batch goes through non-destructive and destructive testing to guarantee the high quality of each part. Inspection includes: Chemical Composition, Dimensional Accuracy, Hardness, Cutting / Sectioning, Metallographic Analysis, Ultrasonic Testing, etc. We have also passed the ISO 9001 certifications, so customers can purchase our parts with confidence. Regarding after-sales service, we provide a 2500 working hours warranty. If any quality problems occur, we will send you a new one for free; actually, quality problems rarely happen.
Related products

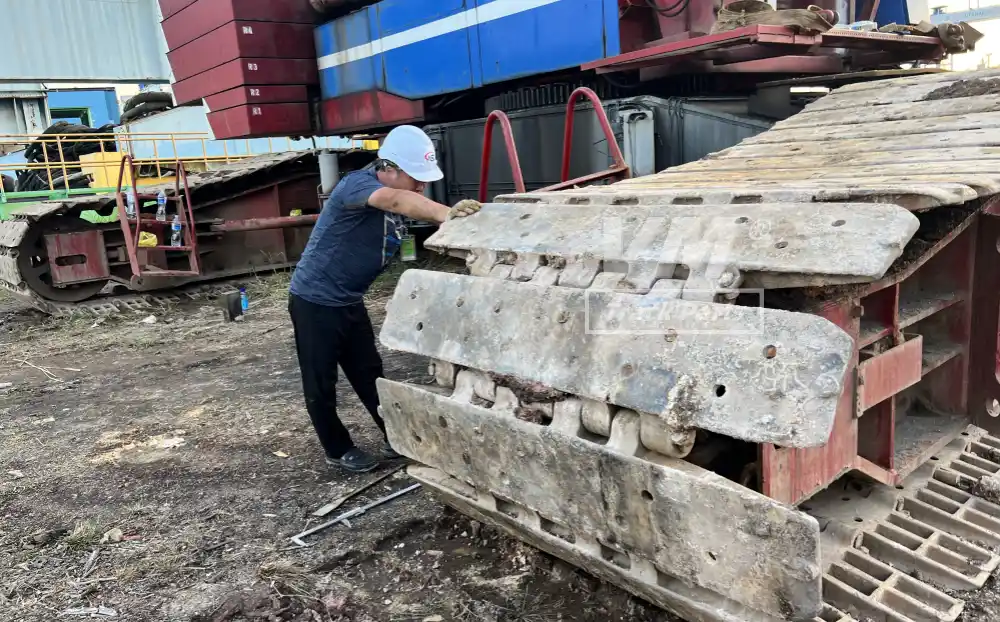

Kobelco CK800-3 Undercarriage Maintenance
For maintenance, we advise CK800-3 operators to:
Stay on top of maintenance schedules, clean the undercarriage, and check whether the track roller, top roller, and bottom roller are leaking regularly. Regular inspection of the undercarriage is necessary to identify worn-out or damaged parts. Replace any worn-out components, including sprockets, rollers, and track shoes, at the earliest to avoid further damage to the undercarriage.
When choosing Kobelco CK800-3 undercarriage parts, prioritize fit, material, and reliability. If the parts dimensions do not fit the crawler crane well, it will cause installation difficulties and extra wear. Low-grade materials need to be replaced frequently, raising long-term costs. Shandong Value Machinery checks all these requests: we usually produce the undercarriage parts based on original parts or drawings, so our parts can fit the crane perfectly; material of our parts are high-grade, for example the track rollers and top rollers are produced via round steel NOT square steel, choose the best sealing components, in this way, can prolong service life of rollers; At the same time, all our parts are undergo strict testing from material till to finish production.
Contact US
As a leading Chinese supplier (Your Source For High-Quality Crawler Crane Undercarriage Parts), Shandong Value Machinery focuses on provide high quality crawler crane track shoes, bottom rollers, top roller, idler, sprocket, and other related parts. Our products cover 35-ton to 1600-ton cranes, serving clients all over the world, like North America, Europe, the Middle East, and Southeast Asia, in more than 50 countries and areas. We combine OEM-level quality with competitive pricing and fast delivery—making us the go-to choice for CK800-3 crawler crane owners.
Email: info@cranetrackpart.com
Whatsapp：86 15253585909
