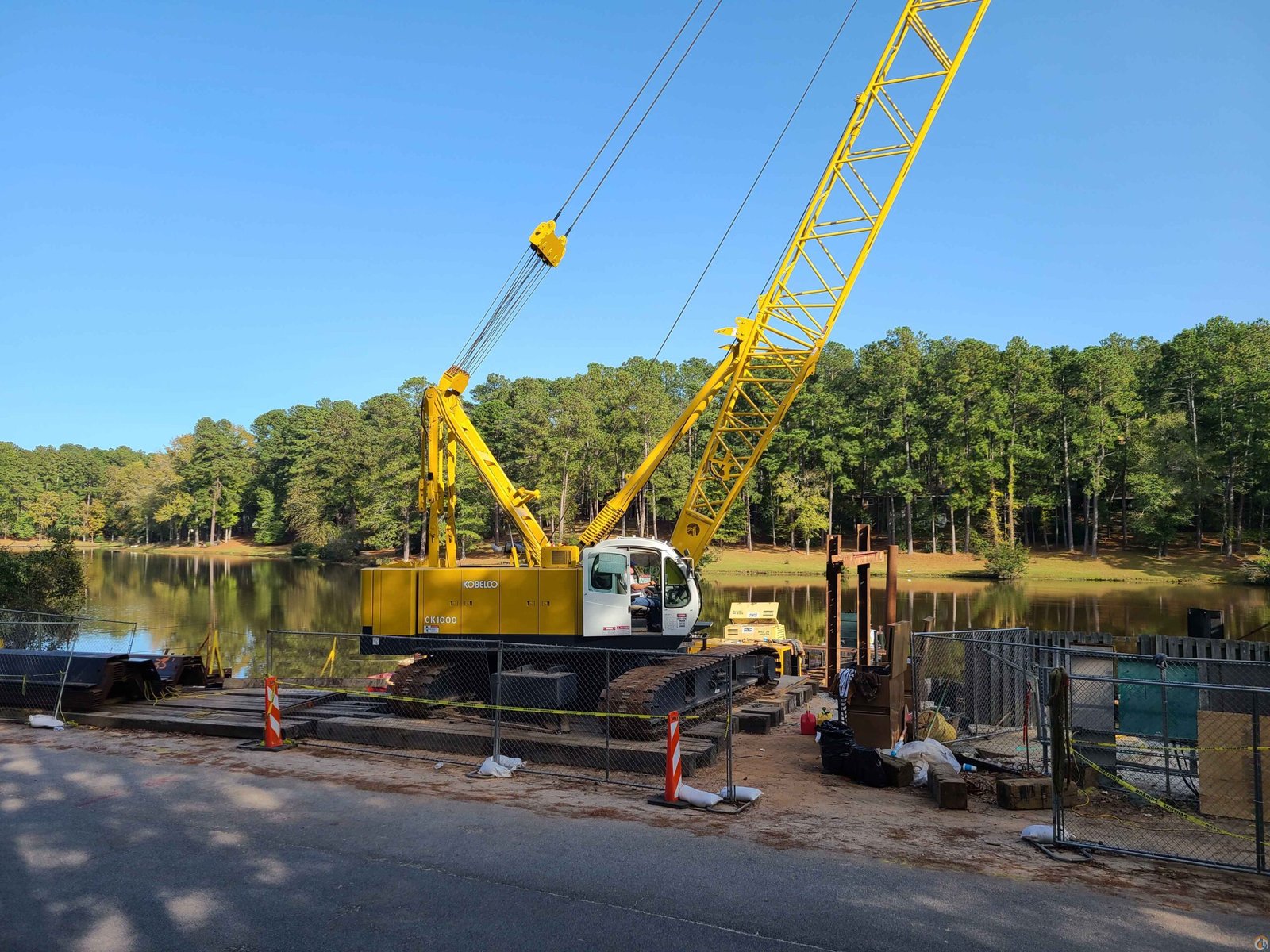

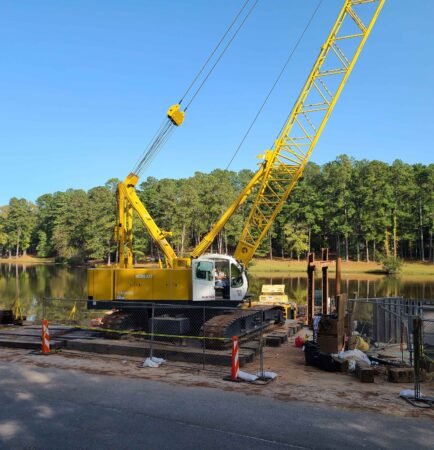

100-ton Crawler Crane: Kobelco CK1000
Core Specifications
The CK1000 series delivers a maximum lifting capacity of 100 US tons, with a main boom extending from 40 feet to 200 feet. Jib extensions add 30 to 60 feet of additional reach, with optional luffing jib configurations available. The crane is powered by a Mitsubishi 6D24-TEG engine.
Two primary models define the series: the CK1000-II and the CK1000-III. Both are fabricated from high-tensile steel and optimized using CAD technology for structural rigidity. The CK1000-III serves as an upgraded version of its predecessor, featuring an innovative full hydraulic system and a one-piece welded high-tensile steel carbody design.
Key Specifications at a Glance
| Specification | Detail |
| Max. Lifting Capacity | 100 US tons |
| Main Boom Length | 40 – 200 ft |
| Fixed Jib Length | 30 – 60 ft |
| Luffing Jib | Available (up to 170 ft) |
| Engine | Mitsubishi 6D24-TEG |
| Series Models | CK1000, CK1000-II, CK1000-III, CK1000-III HD |
Design and Construction
The CK1000 series emphasizes reliability, convenient maintenance, and ease of transport. The CK1000-III, in particular, incorporates a single-piece welded carbody made from high-tensile-strength steel, manufactured using advanced CAD technologies. This design approach ensures the crane can withstand the demands of heavy-duty lifting operations across various job site conditions.
All crane operations—including load hoist, boom hoist, swing, propel, crawler extension/extraction, and free-fall—are fully hydraulic. The series is also capable of installing and removing counterweight and crawler frames without requiring extensive auxiliary equipment.
Related Products
Kobelco CK1000 track shoe
Kobelco CK1000 bottom roller
Kobelco CK1000 top roller

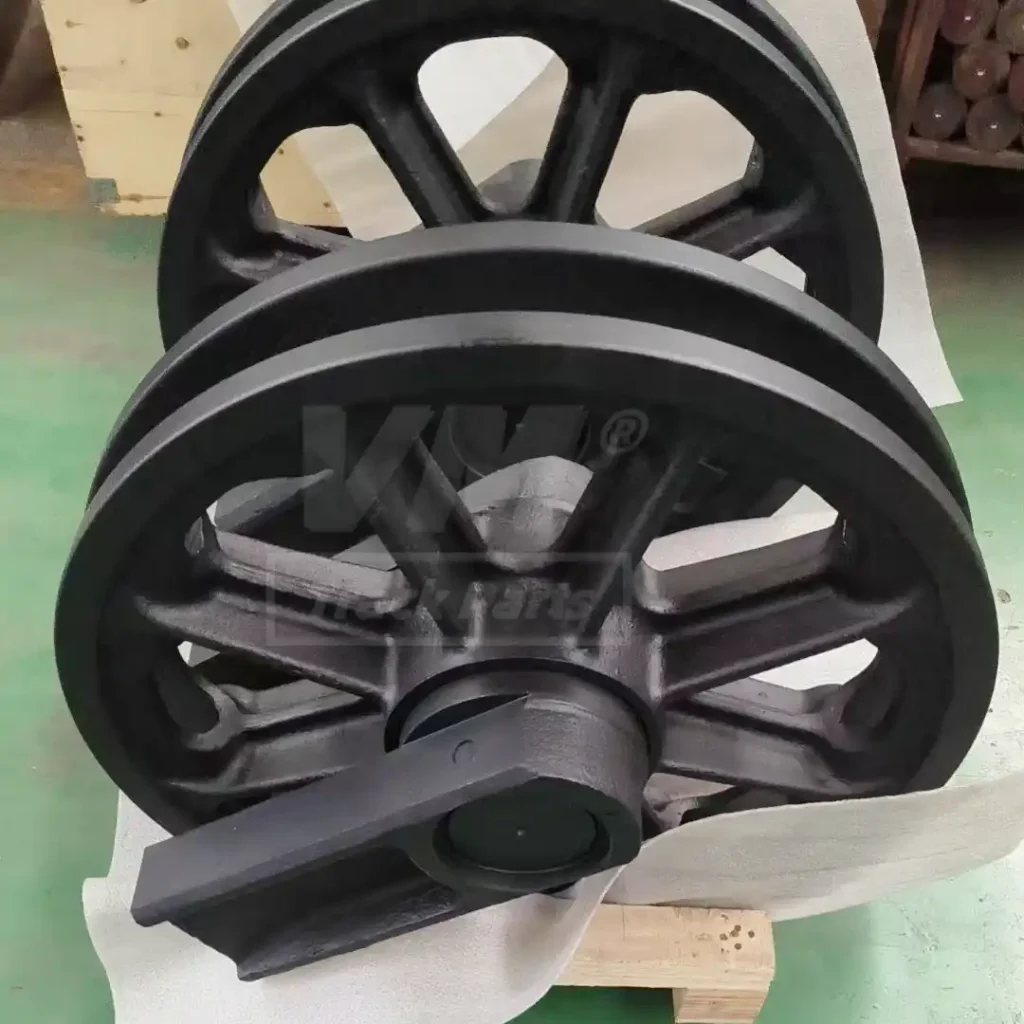

Kobelco CK1000 idler

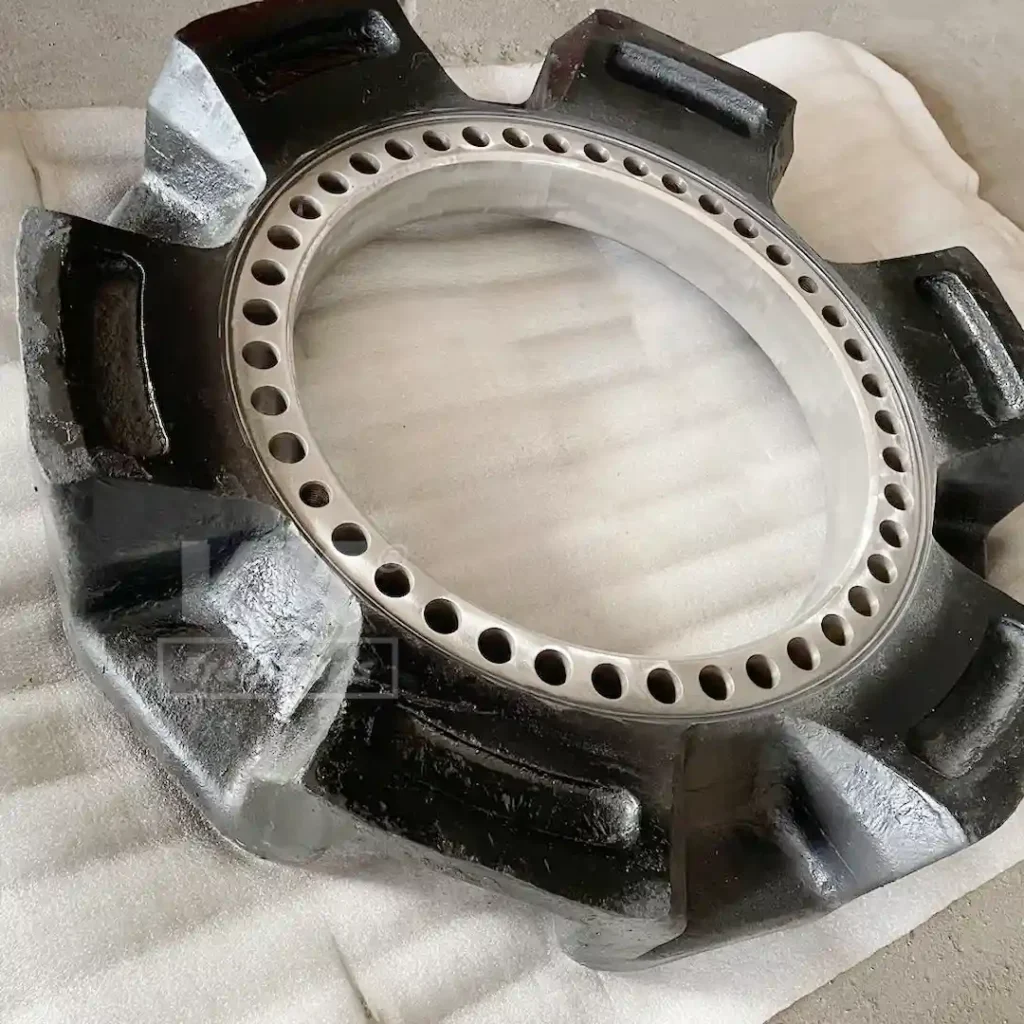

Kobelco CK1000 sprocket
